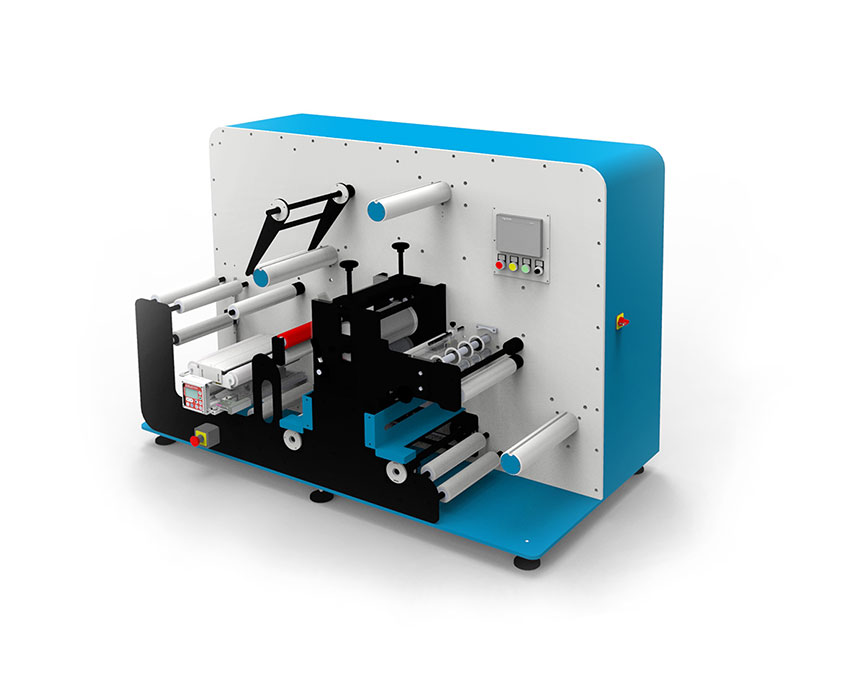

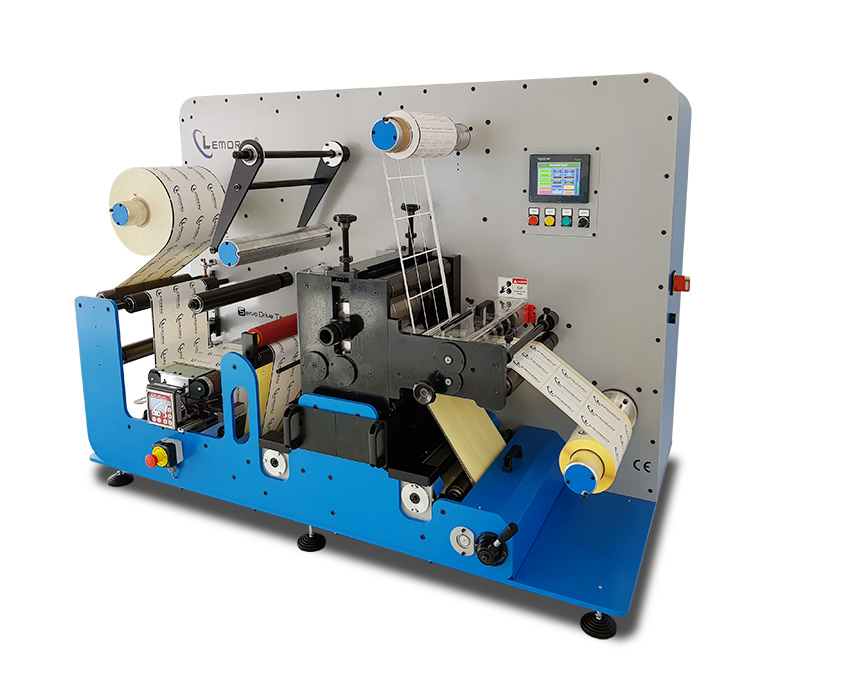

Lemorau EBRM+
Lemorau EBRM+ is an affordable table top digital finishing machine that can coat, die cut, slit and rewind digital printed webs. Due to an electronic feeder roll, the machine can be used as in-line finishing machine together with digital press or as offline finishing machine. The EBRM+ die cutting unit can run in full and semi-rotary modes. The web tension is electronically controlled and due to the machine mechanical shafts no air is required.
STANDARD FEATURES
- Maximum rotary speed 80 m/min. (262.4 ft/min.) – Die cutting to register
- Maximum semi-rotary speed 25 m/min (82 ft/min.) dependent on plate size – Die cutting to register
- Web width 250, 330 mm (10, 13″)
- Electronic labels and meters counter
- 250 Job memory for easy and quick job set ups
- Automatic web tension control
- Electronic sensors to start, stop, move faster and move slower while working in line

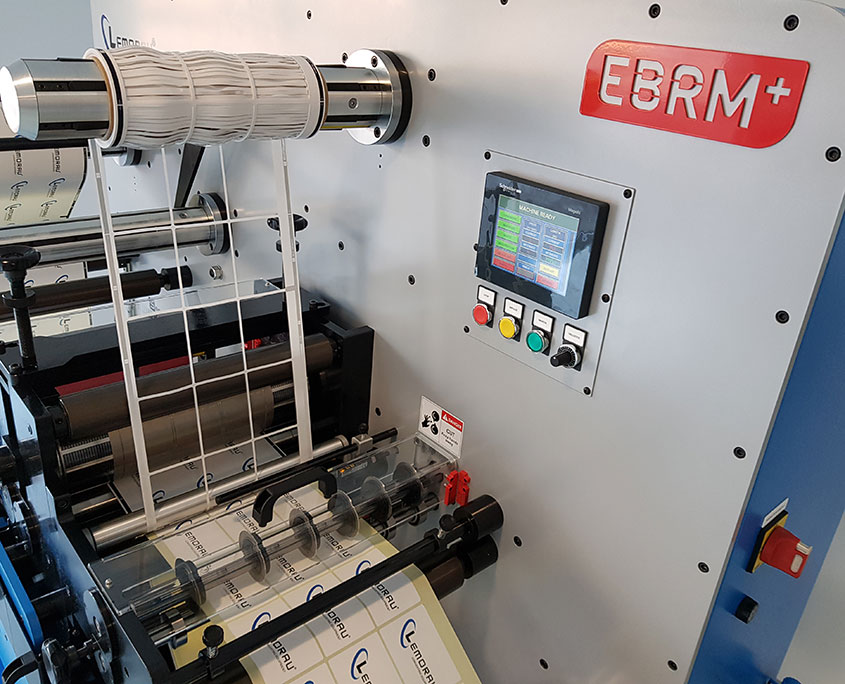

- Multi language HMI touch screen
- QRC (Quick Remote Connection)- For fast and easy access to the machine remotely
- Electrical supply according to country/customer request (no need of transformers)
- CE conformity certificated, user manual and electrical scheme

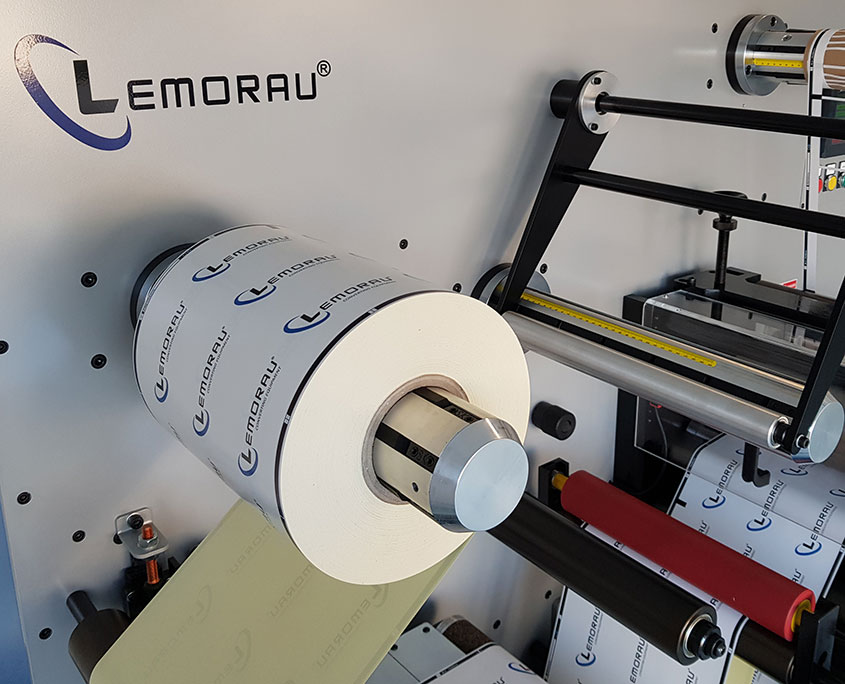

UNWINDER
- Mechanical shaft ID 76mm (3”)
- Max. diameter 450mm (18″)
- Clockwise/counterclockwise unwinding
- Electronic web guide system with ultrasonic sensor which enables guiding of opaque and clear materials
- Splice table
LAMINATION
- 01 Linerless lamination unwinder mechanical shaft
- Max. diameter 300mm (12”)
- Lamination shaft ID 76mm (3″)
DIE CUTTING
- Operates in full Rotary and Semi-rotary modes with lateral adjustment
- Equipped with magnetic cylinder Z130 1/8”
- Die repeats in rotary mode: 203,20 – 412,75 mm (8 – 16.25″)
- Recommended die repeat in semi-rotary mode (Z130): 82,55- 330,20 mm (3,25 – 13″)
- Servo driven buffer
- Waste rewinder with mechanical shaft ID 76mm
- Waste max. diameter 450mm (18”)
SLITTING UNIT
- Equipped with 6 sets of circular knives with lateral adjustment – Can be added more as optional
REWINDING
- 01 rewinder mechanical shaft with max. diameter 360mm (14”)
- Shaft ID 76mm (3”) – minimum ID possible to use is 40mm (1.57”)
- Colockwise and counterclockwise rewinding
OPTIONAL EQUIPMENT
- Additional slitting knives
- Clear on clear sensor
- In feed tension system to work inline w/ flatbed, semi-rotary and screen machines
- Pneumatic air shafts
- Work bench
